REGULATEURS EUROPA REGRE20 SERIES ACTUATOR- REPLACES WOODWARD EG3P

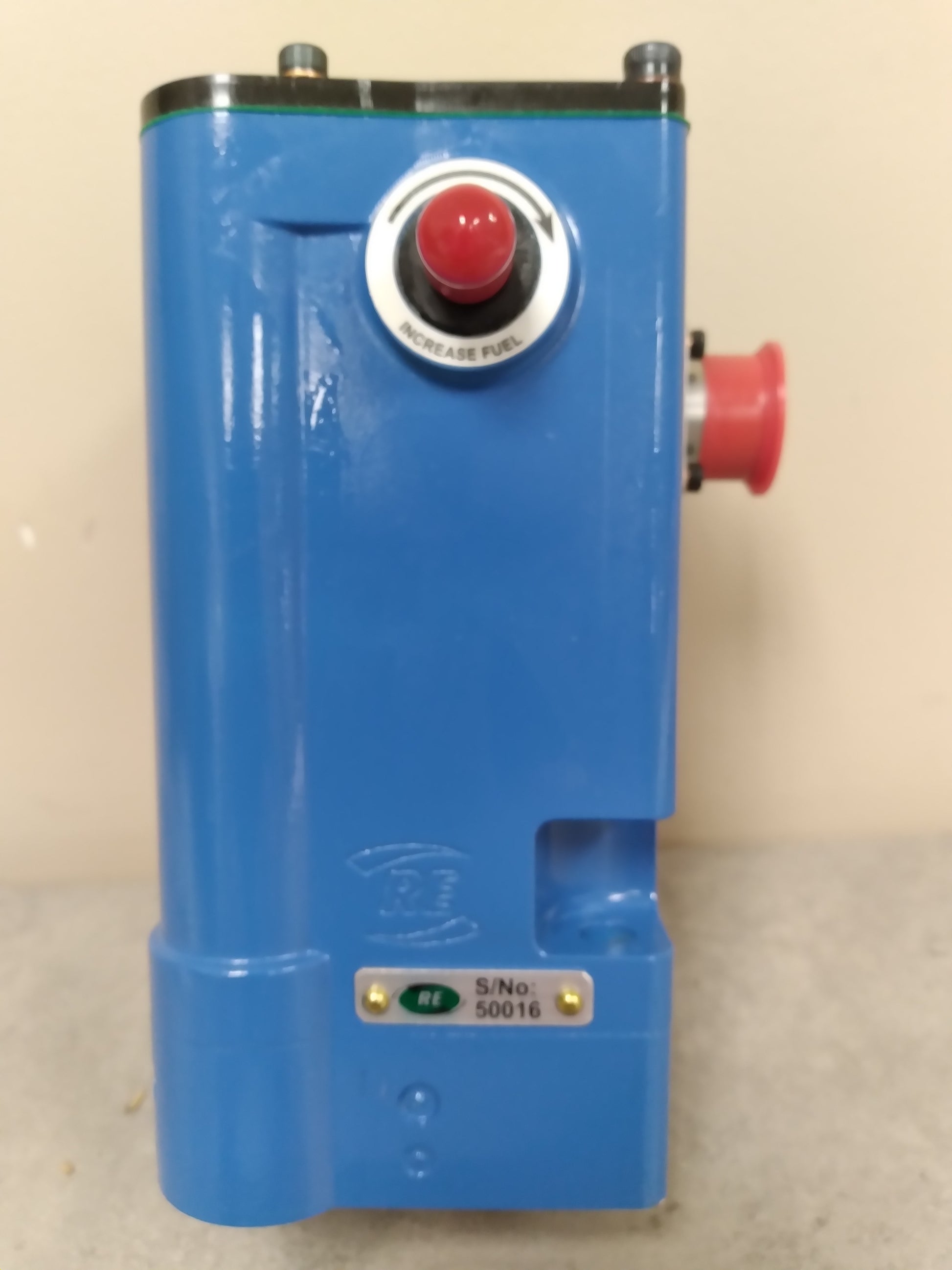

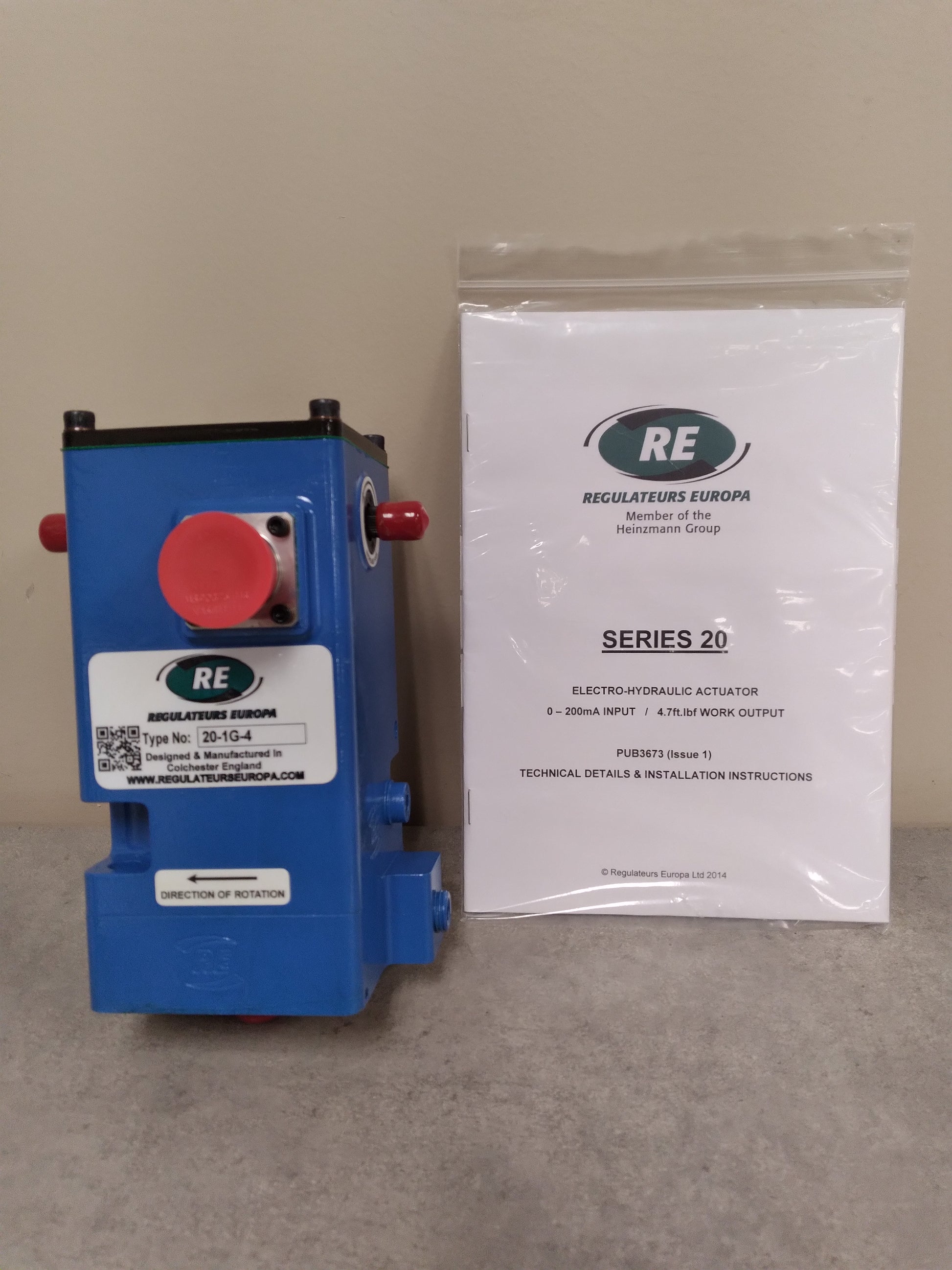

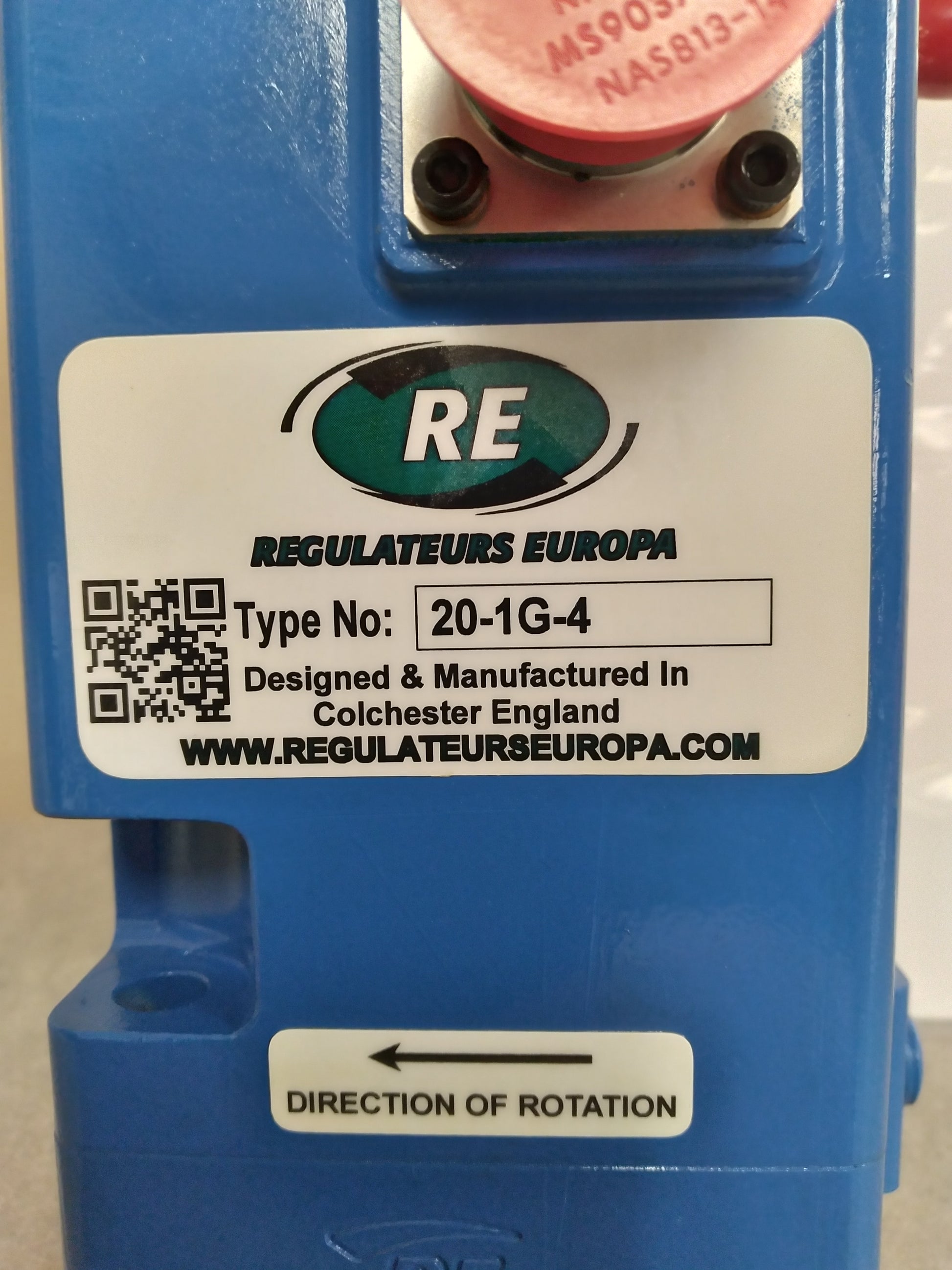

New Regulateurs Europa Series 20 Compact Hydraulic Proportional Fuel Actuator . S/N 50016 . OE Part # REGRE20 . A Heinzmann actuator.
Replaces Woodward EG3P
Specification
• Speed - 1500 – 4000rpm
• Output - 5 ft.lbf
• Output travel - 42˚
• Input signal - 20 -160mA
• Oil system - Engine fed & boosted to 250 psi
• Rotation - CW/ACW
• Attitude - Hor/Vert
• Size - 170 x 80 x 85
