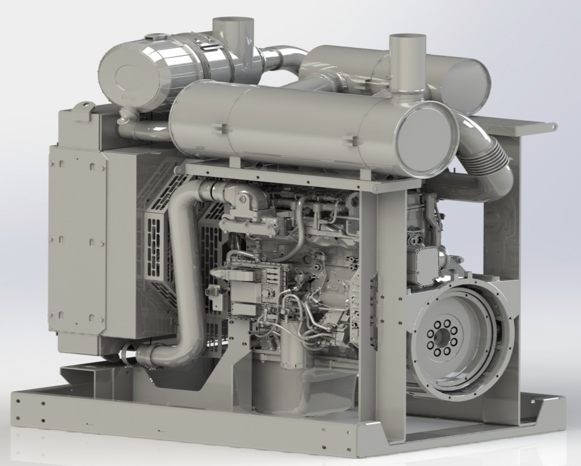

FPT N45 Tier 4 Power Unit
Engine Model |
Rated Power |
Max Power |
Peak Torque |
FPTN45-1000 | 119 HP @ 2200 RPM | 119 HP @ 2200 RPM | 398 lb. ft. 1250 RPM |
FPTN45-2000 | 138 HP @ 2200 RPM | 153 HP @ 1800 RPM | 469 lb. ft. 1500 RPM |
FPTN45-3000 | 168 HP @ 2200 RPM | 170 HP @ 1900 RPM | 524 lb. ft. 1500 RPM |
FPTN45-5000 | 169 HP @ 1800 RPM |
169 HP Standby / |
G-Drive |
Standard Power Unit:
SAE 3 Flywheel Housing
11.5" Flywheel Housing
24V Starter
24V 70 Amp Alternator
Control Panel
Engine Mounted Cooling Package
After Treatment System-SCR Only
43L DEF Tank
Heated DEF Line
Heavy Duty Air Cleaner with Safety Elements
Fuel Prefilter (Mounted)
Engine Oil & Coolant
Pedestal Style Front & Rear Engine Mount
Suction Fan (Industrial) Pusher Fan (G-Drive)
