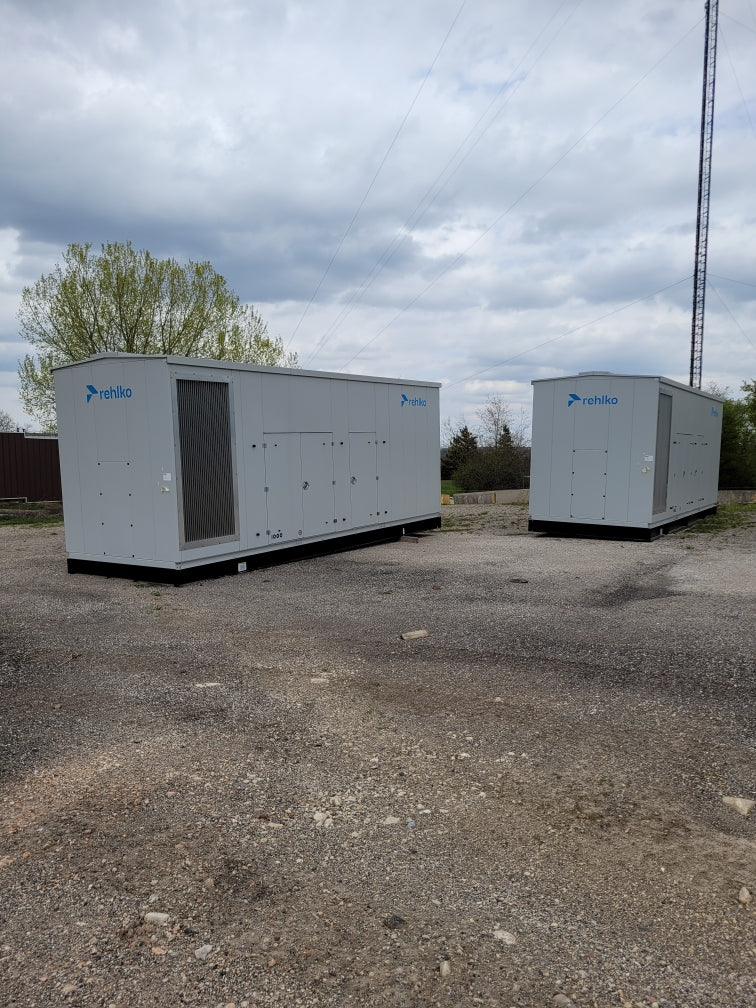

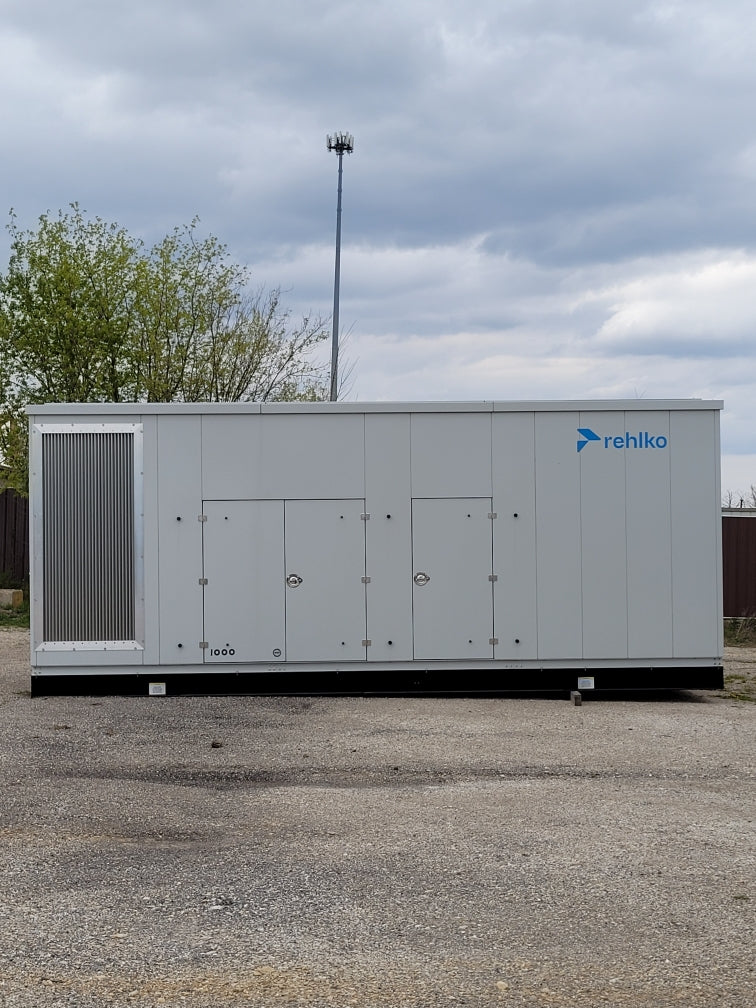

Rehlko/Kohler KD1000 1mw Diesel Generator with Enclosure

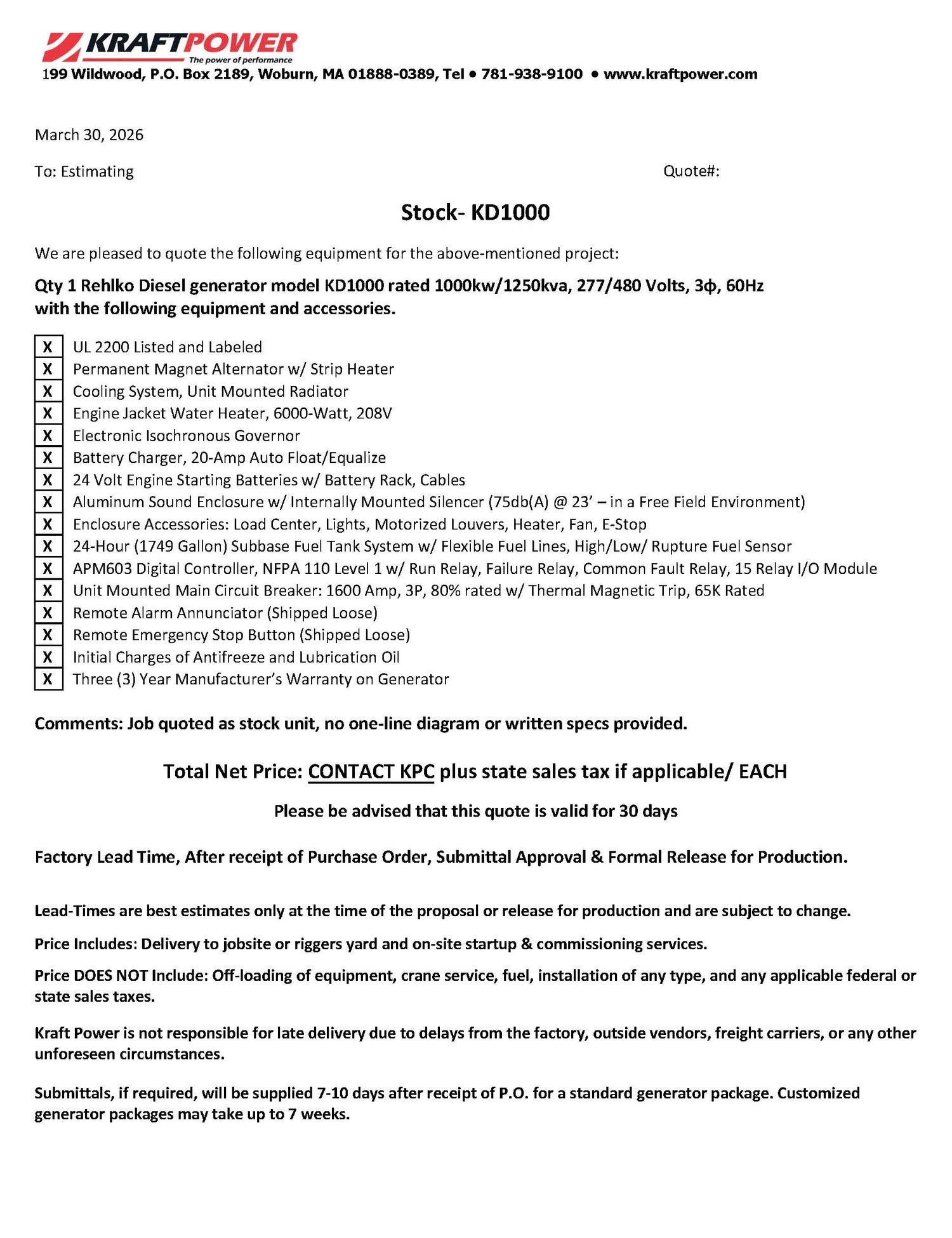

Qty 2 Rehlko Diesel generator model KD1000 rated 1000kw/1250kva, 277/480 Volts, 3ɸ, 60Hz
with the following equipment and accessories.
UL 2200 Listed and Labeled
Permanent Magnet Alternator w/ Strip Heater
Cooling System, Unit Mounted Radiator
Engine Jacket Water Heater, 6000-Watt, 208V
Electronic Isochronous Governor
Battery Charger, 20-Amp Auto Float/Equalize
24 Volt Engine Starting Batteries w/ Battery Rack, Cables
Aluminum Sound Enclosure w/ Internally Mounted Silencer (75db(A) @ 23’ – in a Free Field Environment)
Enclosure Accessories: Load Center, Lights, Motorized Louvers, Heater, Fan, E-Stop
24-Hour (1749 Gallon) Subbase Fuel Tank System w/ Flexible Fuel Lines, High/Low/ Rupture Fuel Sensor
APM603 Digital Controller, NFPA 110 Level 1 w/ Run Relay, Failure Relay, Common Fault Relay, 15 Relay I/O Module
Unit Mounted Main Circuit Breaker: 1600 Amp, 3P, 80% rated w/ Thermal Magnetic Trip, 65K Rated
Remote Alarm Annunciator (Shipped Loose)
Remote Emergency Stop Button (Shipped Loose)
Initial Charges of Antifreeze and Lubrication Oil
Three (3) Year Manufacturer’s Warranty on Generator
