Power Take offs – PTO – 40 – 300 hp, SAE – 0, 1, 2, 3, 4, 5, – 1920 up to 3500 RPM.
Kraft Power Take-Offs are designed to fit all internal combustion engines with standard SAE flywheel housing dimensions from No. 6 through No. 0. The clutches range in size from one plate 6” to three plate 14”. Suitable power take-offs are available for use with engines in industrial installations up to 583 horsepower.

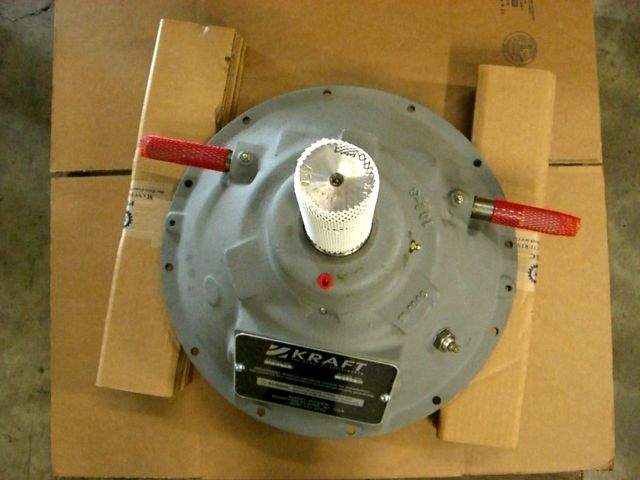

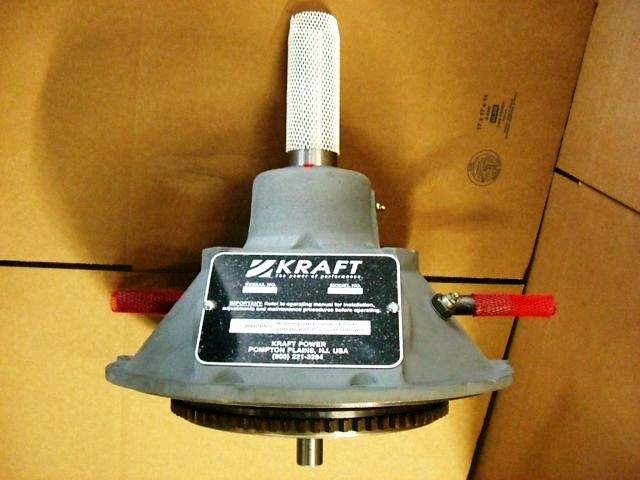

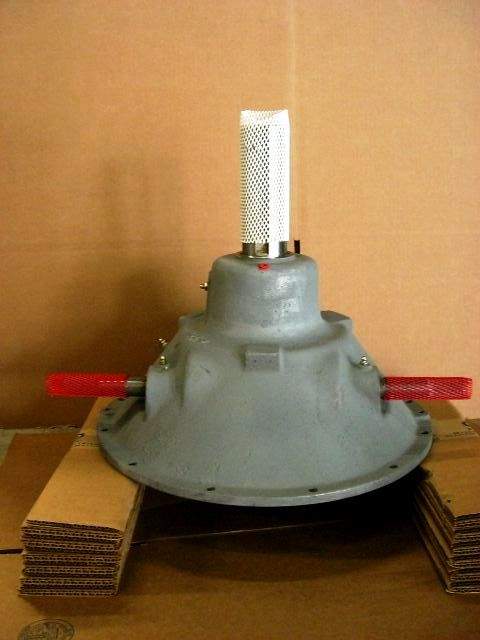

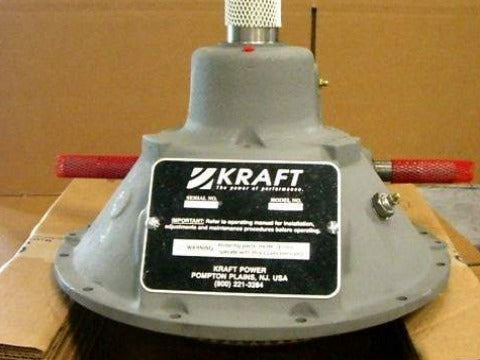

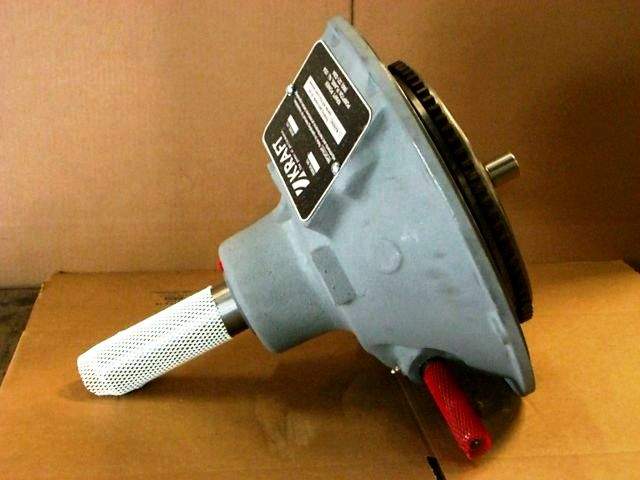

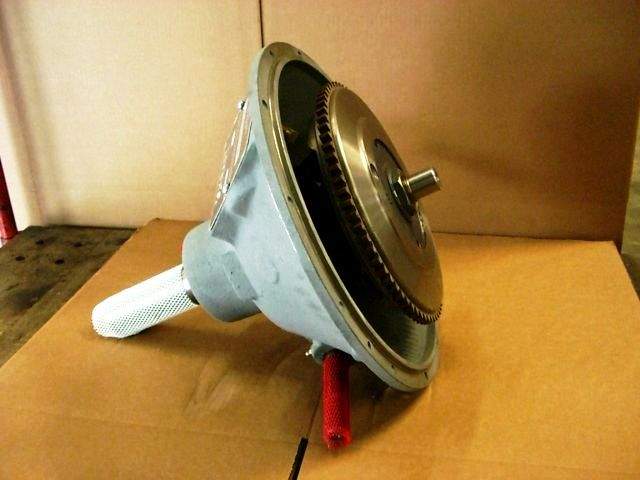

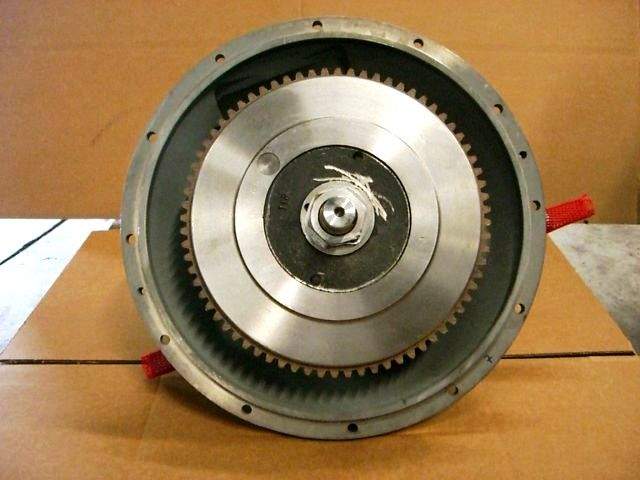

A Power Take-Off consists of a complete clutch assembly with shaft and bearings mounted in a cast iron housing that provides for easy engine installation. PTO’s are used as a standard method for transmitting the power of engines in a great variety of industrial applications such as: air compressors, agricultural machinery, pump drives, crushers, road building machinery, cranes and shovels, oilfield service, etc.
Kraft offers power take-offs for all industrial engines with sealed pilot bearings to eliminate the lubrication requirement and shaft rifle-drilling normally encountered with standard pilot bearings. Actual design torque capacity of the clutches used in power take-offs is in excess of the horsepower rating listed. This permits Kraft power take-offs in proper adjustment to withstand temporary torque overloads. Rated torque can be transmitted while moderately slipping during short periods without permanent damage.
